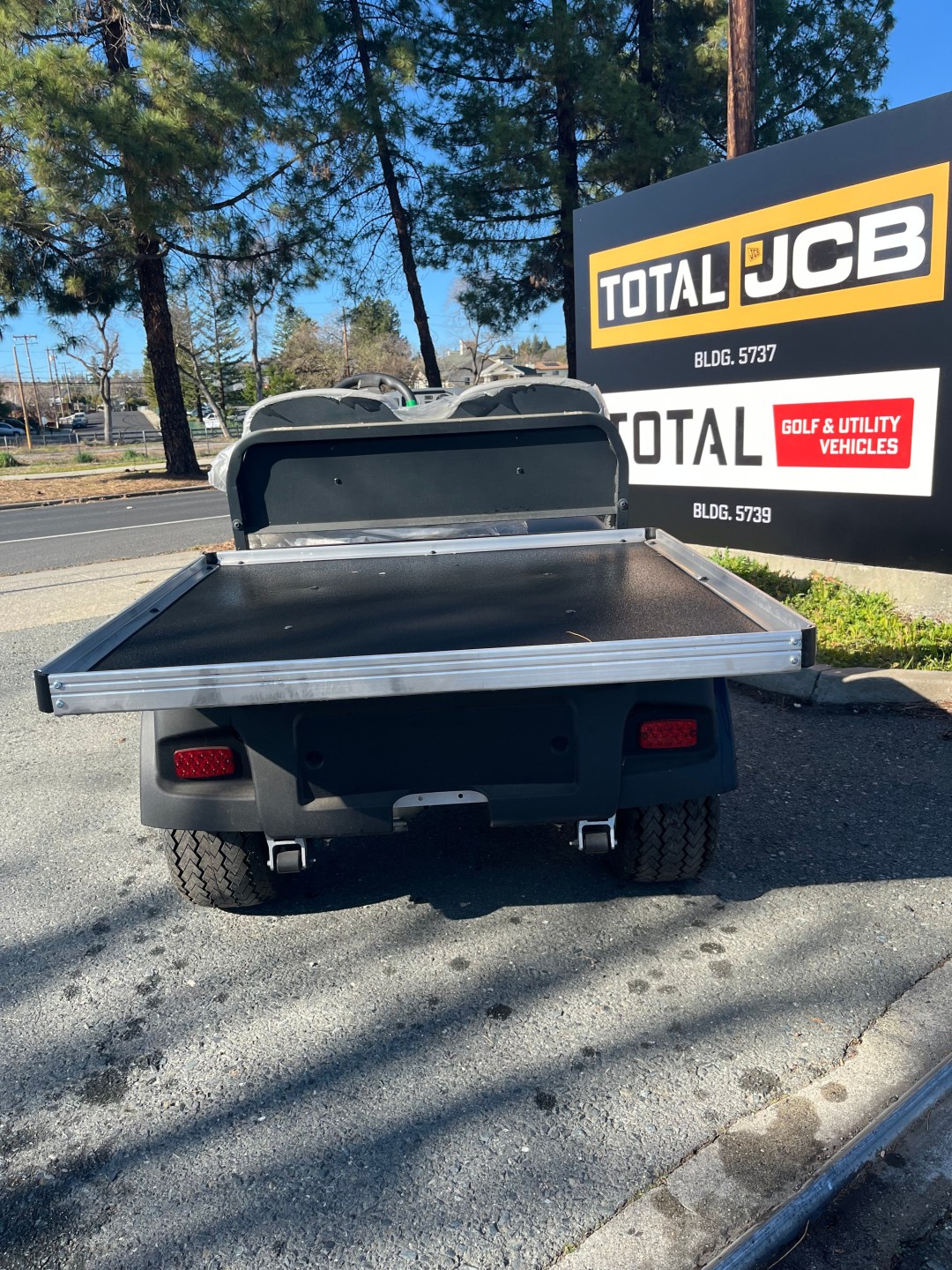

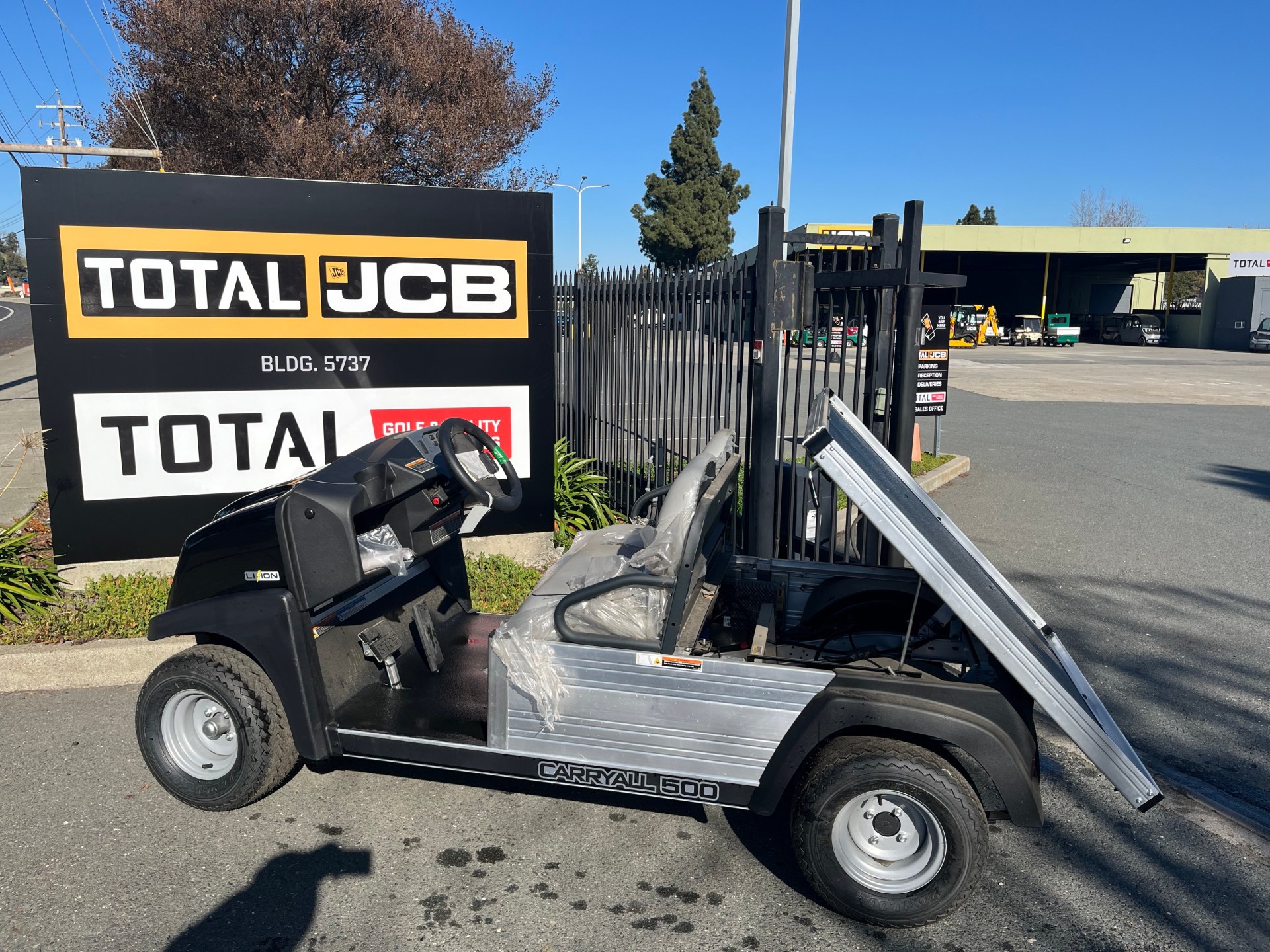

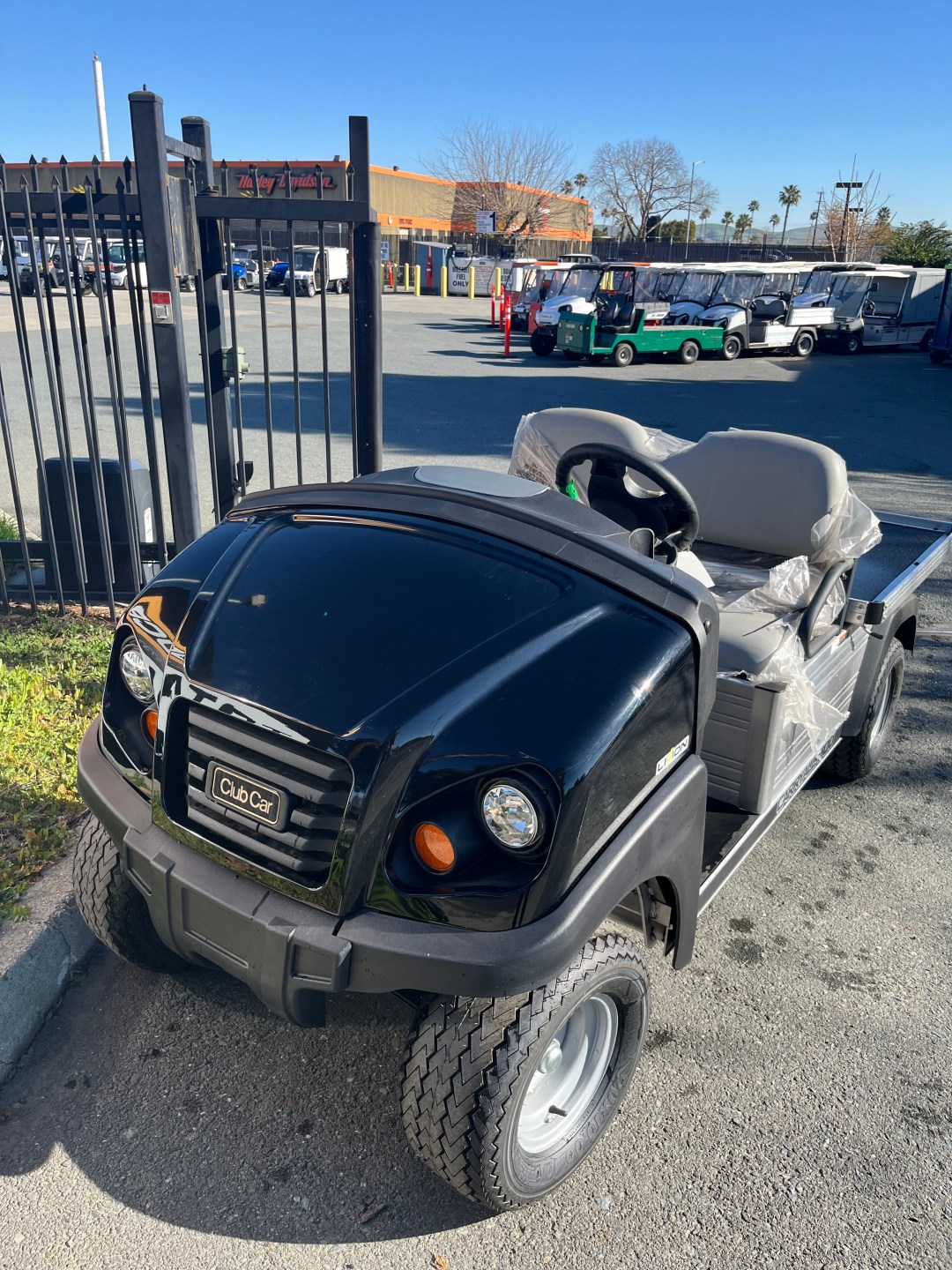

Carryall 500-LI

2-Passenger Electric Personnel / Burden Carrier
MOTOR: 48-Volt DC, CONTROLLER: 500 Amp – Solid State
HORSEPOWER: 3.7 Hp (2.7 KW) Rated, Peak 20 Hp (14.9 KW)
MAX TORQUE: 71 Ft-Lbs (96.2 N-M) Rated @ 1450 Rpm
TRANSMISSION: Direct Drive, Double Reduction Helical Gear
BATTERY: Six (6) – 8 V Flooded Lead Acid
CHARGER: Delta-Q ERIC (1Kw High Frequency), 110v Plug-in
HEADLIGHTS: Two 37.5 Watt Halogen
STEERING: Self-Adjusting Rack And Pinion
SUSPENSION (FRONT): Independent Leaf Spring With Dual Hydraulic Shocks
SUSPENSION (REAR): Semi-Independent Leaf Spring With Dual Hydraulic Shocks
BRAKES: 4-Wheel Mechanical Drum
PARK BRAKE: Foot Operated, Multi-Lock
TIRES: 20 X 10-10, 6-Ply
WHEELBASE: 78.1 In (198.3 Cm)
OVERALL HEIGHT: 47.1 In (119.6 Cm)
OVERALL LENGTH: 118 In (299.7cm)
MAX WIDTH (W/O MIRRORS): 50.3 In (127.7cm)
GROUND CLEARANCE: 5.6 In (14.2 Cm)
CARGO BED L x W x H: 44.2 X 47.5 X 10.5 In (93.9 X 120.6 X 26.6 Cm)
VEHICLE CURB WEIGHT: 1393 Lb (631.8 Kg)
BED LOAD CAPACITY: 800 Lb (362.8 Kg)
TOTAL VEHICLE CAPACITY: 1200 Lb (544 Kg)
TOWING CAPACITY: 1500 Lb (680.3 Kg)
COMBINATION RATED CAPACITY: 1500 Lb (680.3 Kg)
SPEED: 5-17 Mph (8-27 Kph)
WARRANTY – BATTERY: 4 Year Limited Battery Warranty
WARRANTY – POWERTRAIN: 3 Year Limited Powertrain And Frame Warranty
WARRANTY – VEHICLE: 2 Year Limited Remaining Vehicle

Options included in Price:

Heavy-Duty Front Suspension, Tail & Brake Lights, Horn,

Lithium Battery Upgrade.
