Carryall 710LSV

Street Legal LSV Burden Carrier
MOTOR:48V 3-Phase AC, CONTROLLER: 400 Amp – Solid State
HORSEPOWER: 8 Hp (6 KW), Peak 16 Hp (11.7 KW)
TRANSMISSION: Direct Drive, Double Reduction Helical Gear
BATTERY: Eight (8) – 6 V Flooded Lead Acid
CHARGER: Delta-Q (1KW High Frequency) 110v On-board
HEADLIGHTS: Two 37.5 Watt Halogen
STEERING: Self-Adjusting Rack And Pinion
SUSPENSION (FRONT): Independent Leaf Spring With Dual Hydraulic Shocks
SUSPENSION (REAR): Independent Leaf Spring With Dual Hydraulic Shocks
BRAKES: 4-Wheel Hydraulic Drum
PARK BRAKE: Hand Operated, Multi-Lock
TIRES: 205-65-10 6-Ply, DOT
WHEELBASE: 99.1 In (251.7 Cm)
OVERALL HEIGHT: 74.3 In (188.72 Cm)
OVERALL LENGTH: 137.5 In (349.3 Cm)
MAX WIDTH (W/O MIRRORS): 50.3 In (127.7cm)
GROUND CLEARANCE: 5.6 In (14.2 Cm)
CARGO BED L x W x H: 64.5 X 47.5 X 10.5 In (163.8 X 120.6 X 26.6 Cm)
VEHICLE CURB WEIGHT: 1765 Lb (801 Kg)
BED LOAD CAPACITY: 850 Lb (385.6 Kg)
TOTAL VEHICLE CAPACITY: 1050 Lb (476 Kg)
TOWING CAPACITY: 1050 Lb (476 Kg)
COMBINATION RATED CAPACITY: 1050 Lb (476 Kg)
SPEED: 25 Mph (40 Kph)
WARRANTY – BATTERY: 4 Year Limited Battery Warranty
WARRANTY – POWERTRAIN: 2 Year Limited Powertrain And Frame Warranty
WARRANTY – VEHICLE: 1 Year Limited Remaining Vehicle
Options included in Price:
Cargo Box, VersAttach Bed Mounted Ladder Rack, Tail & Brake Lights,
Turn Signals, Horn, RH & LH Side Mirrors, Roof Mounted Amber Strobe,
Aluminum Locking Toolbox, Locking Glovebox, LSV Cab with Solid Doors & Rear Window,

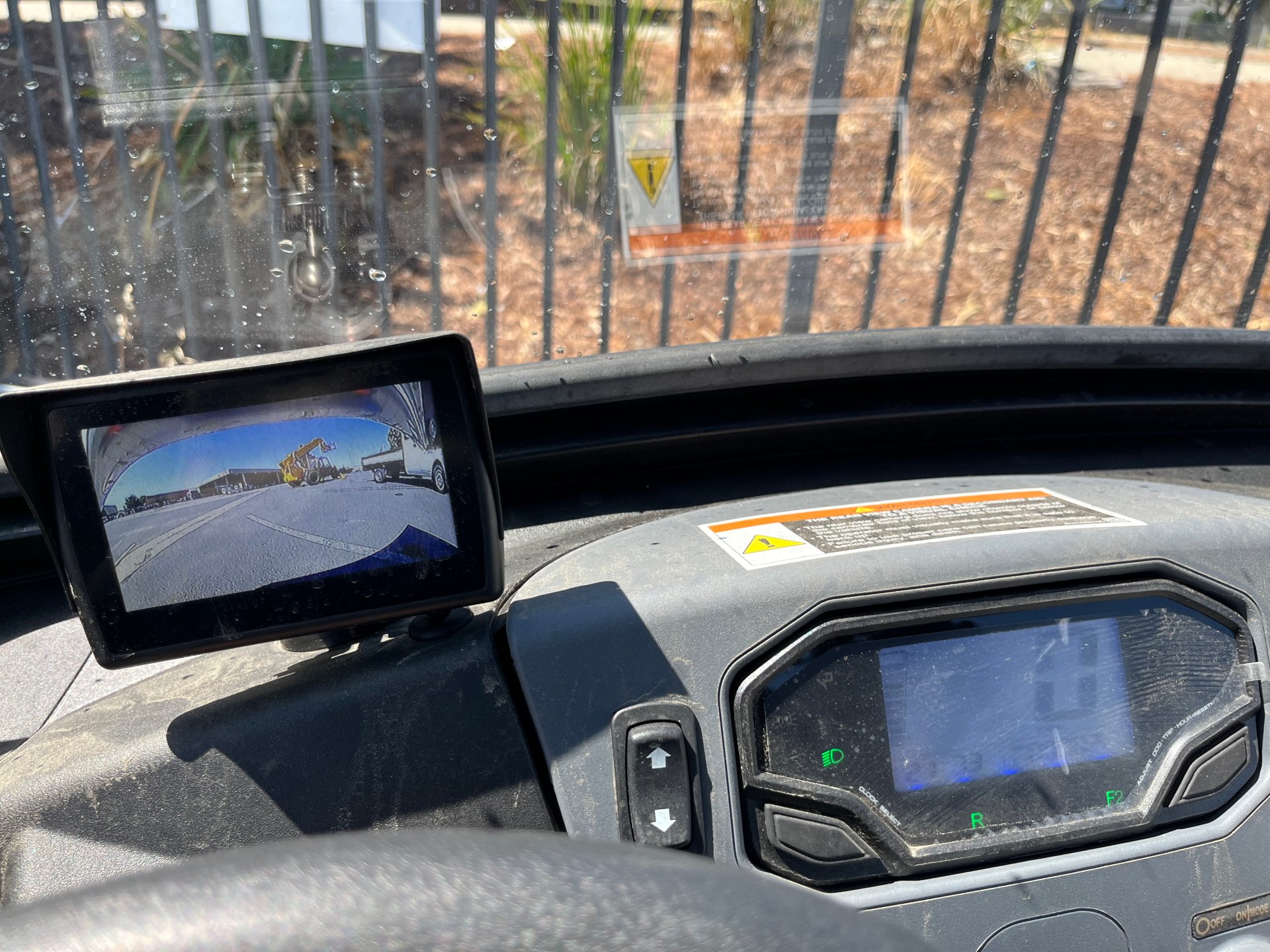

Cab Overhead Console kit. Heater/Defroster, Koso LCD Display.
